Products

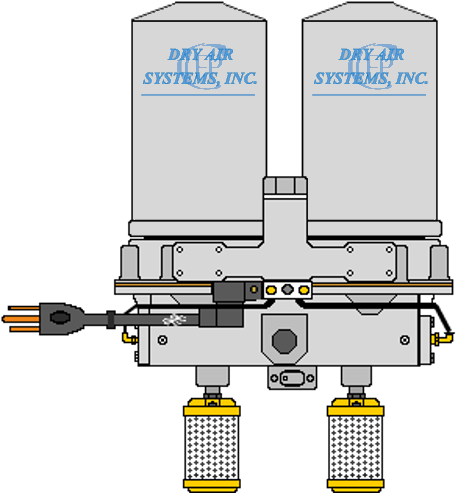

 Standard Capacity Air Dryers

Flow Range 20-600 cfm

Standard and High Capacity Air Dryer Features:

PDP in Excess Of -40°F
Less than 5% RH for Waterborne auto refinishing
Designed Regeneration
.3 Micron Filtration
110, 220 Volt AC
12, 24, Volt DC
Custom Voltages Available
Pneumatically Controlled Option
Classified / Explosion Proof
Cartridge Style Replacement Valves
Modular Design
Expandable
Smart Valve Option (Saves Regeneration Air Usage)
Spin On/Off Desiccant Cartridges
Optional Auto Drain
Zero Loss Drain valve for Reservoir

Service Components:

5 HP 20 CFM

7.5 HP 27 CFM

10 HP 40 CFM

15 HP 60 CFM

20 HP 80 CFM

30 HP 120 CFM

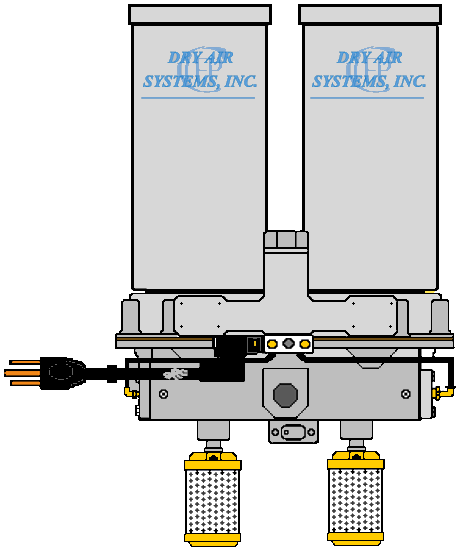

  High Capacity Air Dryers

Flow Range 40-960 cfm

Service Components:

10 HP 60 CFM

15 HP 60 CFM

20 HP 120 CFM

30 HP 180 CFM

50 HP 300 CFM

75 HP 600 CFM

100 HP 480 CFM

150 HP 960 CFM

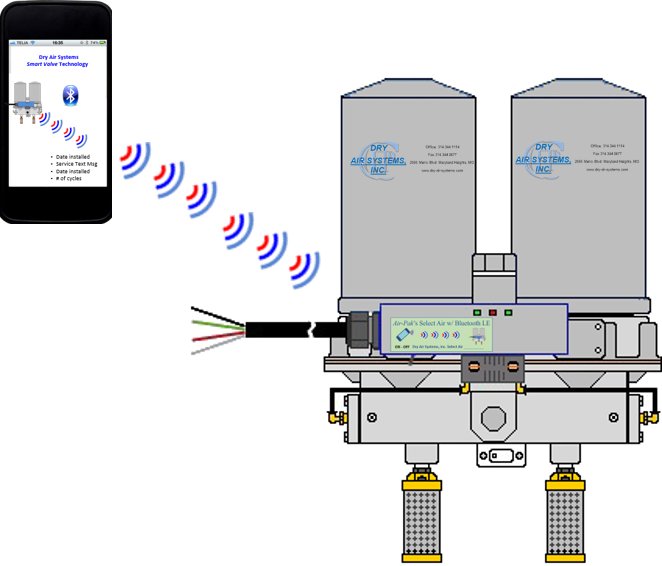

 Select Purge Air Dryers

Flow Range 20-240 cfm

Select Purge Air Dryer Features:

Bluetooth Technology
Records Number Of Dryer Cycles
Will Not Drain air From System overnight
Tracks Service history
Service updates Text messaged
select regeneration timed cycles
90 second cycle for high flow
120 second cycle for moderate flow
Regenerates only When compressor pumping
Test Cycles for service analysis
Installs on Air Pak dryers Currently in service
Cartridge Style Replacement Valves
.3 micron filter
Spin On/Off Desiccant Cartridges
Optional zero loss condensate auto drain

Service Components:

5 HP 20 CFM

7.5 HP 27 CFM

10 HP 40 CFM

20 HP 80 CFM

S.P. High Capacity Service Components:

10 HP 60 CFM

15 HP 60 CFM

20 HP 120 CFM
